Gymnasium with Solar Panels & Exposed Steel Frames

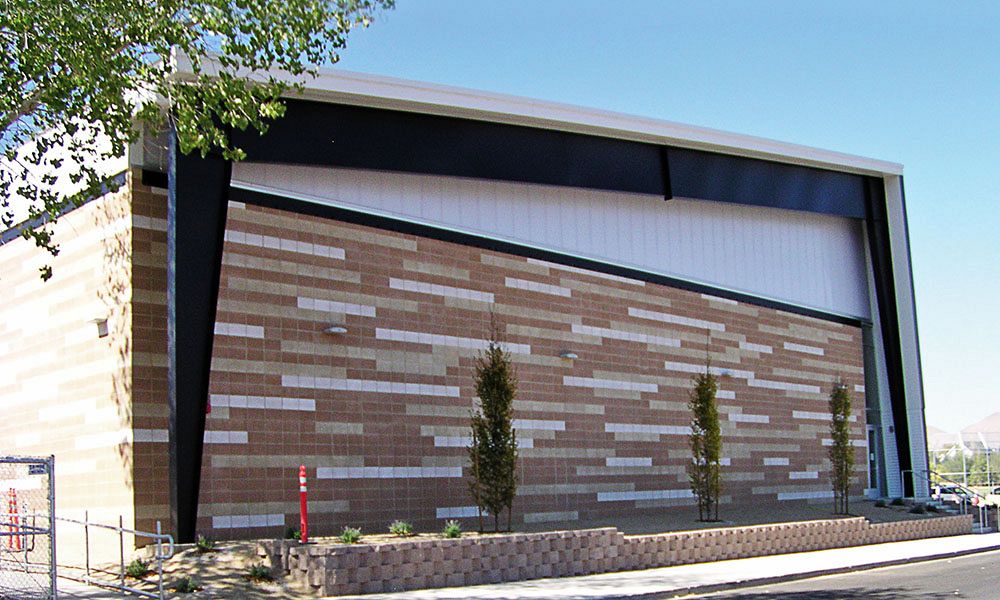

Abstract in design, this middle school gymnasium is a clear span single slope building with tapered columns. The 2’-6” overhang shades the exposed frames on each endwall. A spandrel beam provides additional support to the non-straight CMU sidewall.

The roof features a 1-1/2:12 slope, with solar panels that generate approximately 50W, and a Simple Save insulation system.

  • Location: Carson City NV
  • Size: 17,000 sf
  • Wall System: CMU
  • Roof System: Standing Seam 360
  • End Use: Gymnasium & commons

  • Builder: Miles Construction
